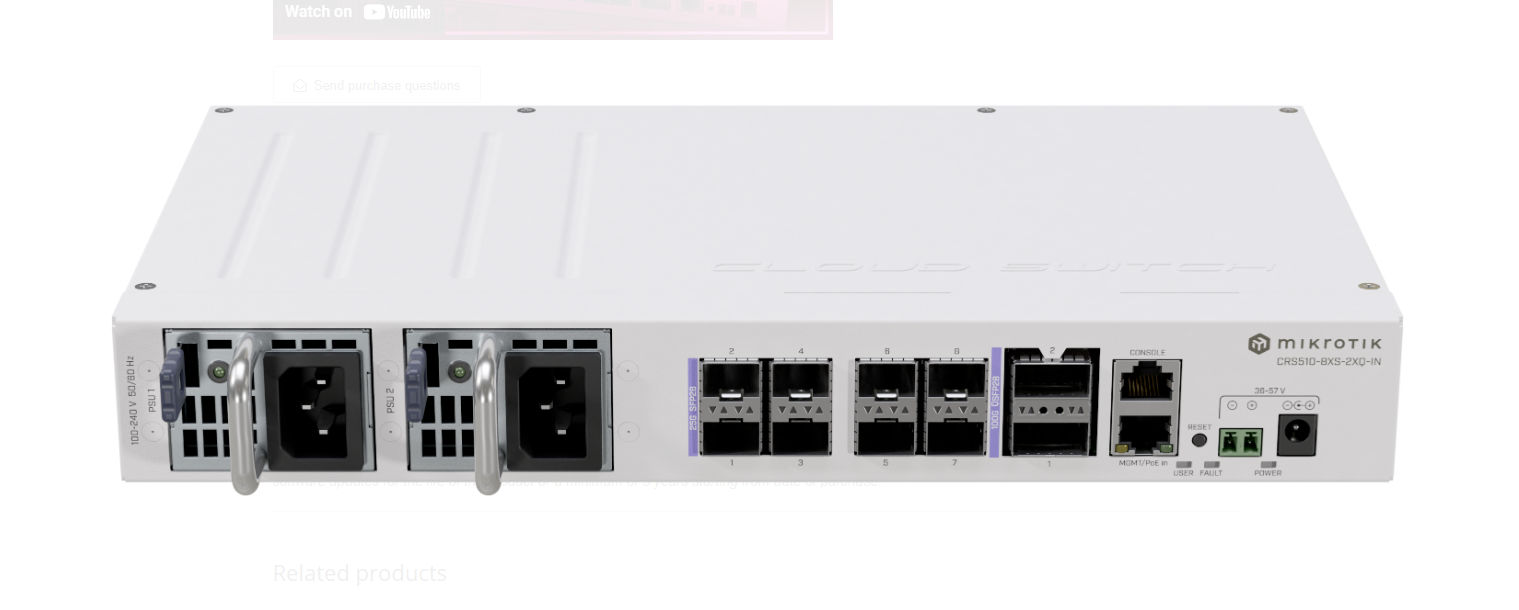

CLOUD ROUTER SWITCH CRS510-8XS-2XQ-IN

Specifications
Details
Product code CRS510-8XS-2XQ-IN
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX4310
RouterOS license 5
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 32 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $999.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 36-57 V
Number of PSU slots 2
2-pin terminal input Voltage 36-57 V
Frequency (Hz) 47-63
Max power consumption 45 W
Max power consumption without attachments 27 W
Cooling type 2 fans
PoE in 802.3 bt
PoE in input Voltage 42.5-57 V
Ethernet
Details
10/100 Ethernet ports 1
Fiber
Details
Number of 25G SFP28 ports 8
Number of 100G QSFP28 ports 2
Peripherals
Details
Serial console port RJ45
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
