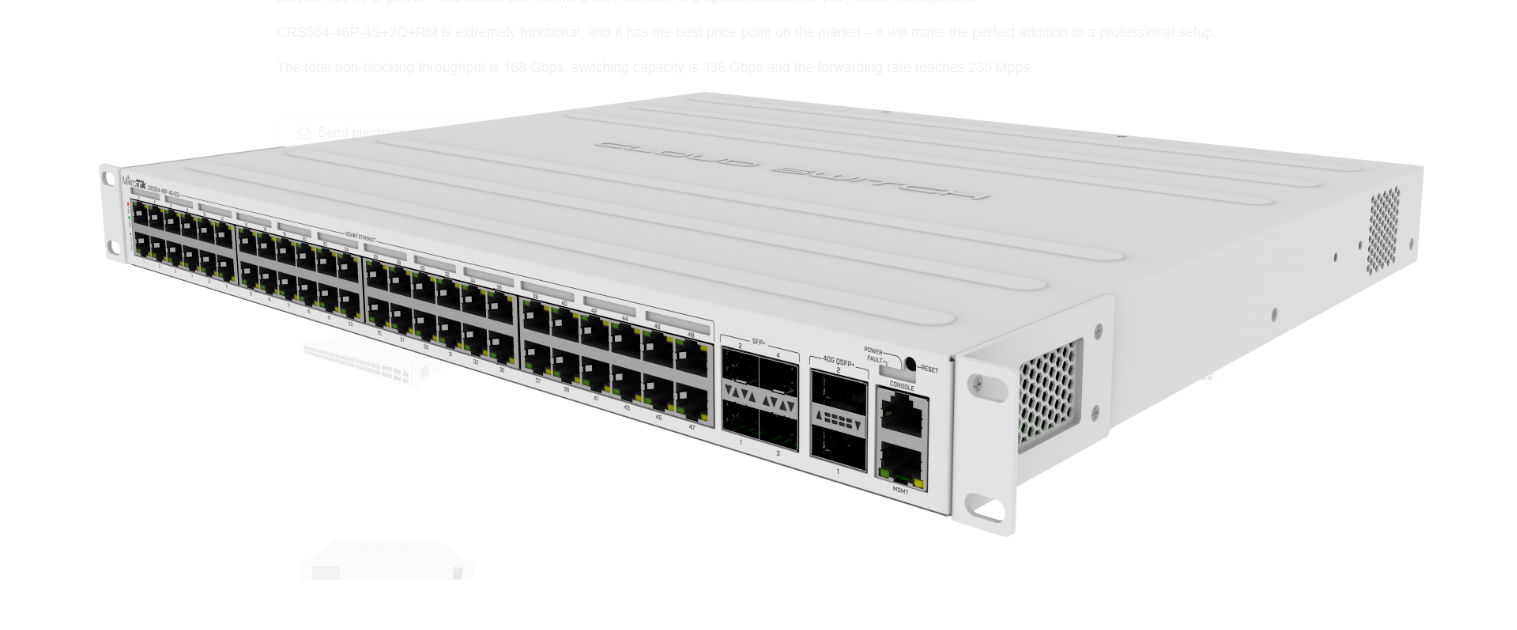

CLOUD ROUTER SWITCH CRS354-48G-4S+2Q+RM

Specifications
Details
Product code CRS354-48P-4S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX3257
Dimensions 443 x 382 x 44 mm
RouterOS license 5
Operating System RouterOS v7 / SwitchOS
Size of RAM 128 MB
Storage size 32 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $999.00
Powering
Details
Number of AC inputs 1
AC input range 100-240
Number of PSU slots 1
Frequency (Hz) 50-60
Max power consumption 800 W
Max power consumption without attachments 85 W
Cooling type 4 fans
PoE-out
Details
PoE-out ports Ether1-Ether48
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 570 mA
Total output current 27A at 26V OR 13.2A at 53V
Total output power 700W
Ethernet
Details
10/100 Ethernet ports 1
10/100/1000 Ethernet ports 48
Fiber
Details
SFP+ ports 4
Number of 40G QSFP+ ports 2
Peripherals
Details
Serial console port RJ45
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
