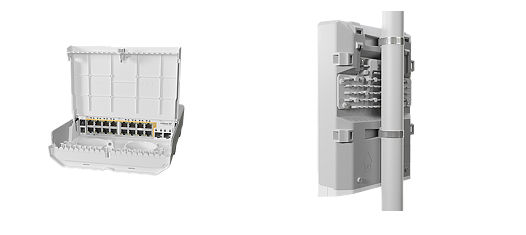

CLOUD ROUTER SWITCH CRS318-16P-2S+OUT

Specifications
Details
Product code CRS318-16P-2S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
Dimensions 303 x 212 x 78 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00
Powering
Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-30 V / 48-57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
Cooling type Passive
PoE-out
Details
PoE-out ports Ether1-Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.6 A
Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2
Ethernet
Details
10/100/1000 Ethernet ports 16
Number of 1G Ethernet ports with PoE-out 16
Fiber
Details
SFP+ ports 2
Other
Details
CPU temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP54
