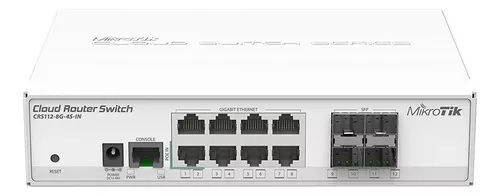

CLOUD ROUTER SWITCH CRS112-8G-4S-IN

Specifications
Details
Product code CRS112-8P-4S-IN
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model QCA8511
Dimensions 200 x 142 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $209.00
Powering
Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-28 V / 48-57 V
Max power consumption 160 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE-out
Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2.8A (18V-28V) & 1.4A (48V-57V) A
Ethernet
Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 8
Fiber
Details
SFP ports 4
Peripherals
Details
Serial console port RJ45
Other
Details
PCB temperature monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
