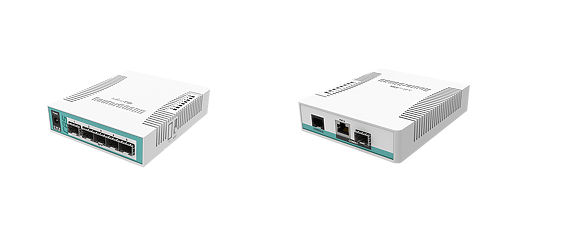

CLOUD ROUTER SWITCH CRS106-1C-5S L5

Specifications
Details
Product code CRS106-1C-5S
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model QCA8511
Dimensions 114 x 137 x 29mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -20°C to 70°C
Suggested price $59.00
Powering
Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 11-30 V
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V
Ethernet
Details
Ethernet Combo ports 1
Fiber
Details
SFP ports 5
Peripherals
Details
Serial console port RJ45
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
